Hydro Hammer

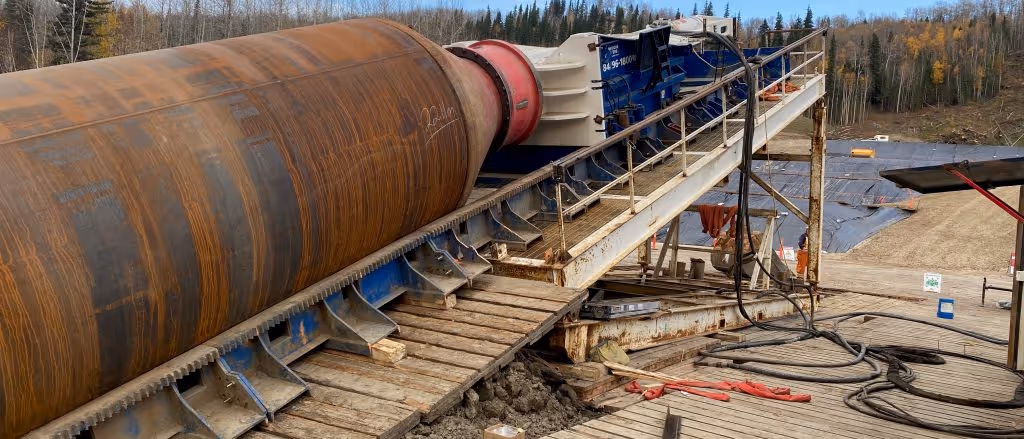

THE TUNNELING COMPANY’S ADVANCED HYDRAULIC HAMMER

THE HYDRO HAMMER SYSTEM IS YOUR BEST OPTION FOR INSTALLING LARGE DIAMETER CASING IN UNSTABLE GROUND CONDITIONS.

OUR PATENTED HYDRO HAMMER SYSTEM IS IDEAL FOR:

  •   Large diameter culverts in challenging ground conditions
  •   Surface casings that require long drive lengths or large diameters
  •   Steep grades or where no reaction wall can be installed
  •   Unconsolidated / wet ground and shallow cover

SPECIFICATIONS & BENEFITS

The hydro hammer allows us to complete projects involving the installation of steel casing in a manner that is efficient, economical, and accurate.

LARGE DIAMETER

Still pipe istalls ranging from 1.2 – 3.5m (4 – 12 ft) diameter

LONG LENGTHS

Any angle and up to 200 m (600 ft)

QUICK AND SIMPLE

Easy setup with no reaction wall required

DAYS NOT WEEKS

More efficient than conventional methods

CAN BE PILOT PIPE GUIDED

For increased accuracy when required

HOW IT WORKS

Our “How It Works” video runs through the individual components and setup of the hydro hammer. Learn more about how installation is completed and how the setup reduces impact on the surrounding environment.

GET IN TOUCH

Ready to chat about the hydro hammer and your project needs? Fill out our form, and we’ll get back to you with the information you’re looking for!

TUNNEL BORING / PIPE JACKING

Tunnel Boring and Pipe Jacking Systems are used to hydraulically install underground pipelines up to 4.2 m (168 in) in OD range within strict alignment and grade tolerances. The likelihood of settling or sloughing is very low. Wheel machines are equipped with various cutter heads and sand shelves. A closed-face attachment is available for boring in unstable ground conditions. This versatile system can be easily adapted to work with any jacking pipe, in any pipe joint length. It can accommodate a wide range of pipe diameters.

Tunnel Boring Machines are used to excavate tunnels with a circular cross section through a variety of soil and rock strata. They can bore through hard rock, sand, and almost anything in between. Tunnel diameters can range from 1 m and exceed 15 m (3 ft to 49 ft).

The Crossing Group - The Tunneling Company - Tunnel Boring - Pipe Jacking - Trenchless Construction - Tunneling - Augering, Boring & Pipe Ramming

SLIP BORING

A boring technique commonly used for installing oil & gas pipelines ranging from 51 mm to 1067 mm (2 in to 42 in) in diameter without leaving casing in the ground. Product pipe is welded to steel casings and either pushed or pulled through the ground in sections. The casing is cut off and removed, leaving just the product pipe. Maximum installation length is 150 m (492 ft).

The Crossing Group - The Tunneling Company - Slip Boring - Trenchless Construction - Tunneling - Augering, Boring & Pipe Ramming

DOWN THE HOLE HAMMER

A pneumatic hammer is attached to the inside edge of the casing. The front of the DTH breaks cobles, boulders and even solid rock into small pebbles or dust. The spoil makes its way through the hammer and into the casing, where it is removed by airway augers.

The Crossing Group - The Tunneling Company - Down The Hole Hammer - DTH - Trenchless Construction - Tunneling - Augering, Boring & Pipe Ramming

GUIDED BORING

A Guided Boring Machine (GBM) is used to install 305 mm to 3.6 m diameter pipe (12 in to 144 in) with grade and alignment precision. It is commonly used for installations 50 m to 150 m in length (164 ft to 492 ft) or when line and grade accuracy is critical in displaceable soil. Our GBM is extremely versatile and our customers continually approach us with new applications.

The pipe installation involves a two-step process where launch and reception shafts are strategically located to minimize surface disruption. A pilot tube with a theodolite guidance system is then pushed through the ground at the precise grade and alignment specified in the design into the reception shaft. A reaming head is welded to the pilot tube and the casing and the pilot tube is used as a guide to install casing. The GBM can be used in conjunction with auger boring or pipe ramming methodologies.

The Crossing Group - The Tunneling Company - Guided Boring - Trenchless Construction - Tunneling - Augering, Boring & Pipe Ramming

PNEUMATIC PIPE RAMMING

Pipe Ramming is used in a wide variety of soil types including gravel, cobble or sand. A pneumatic hammer is attached to the back of the casing pipe and driven through the material at any angle: from horizontal to vertical. The material is cleaned out of the pipe using an auger boring machine. Pipe Ramming methods are used for pipe diameters of 305 mm to 3.6 m (12 in to 144 in).

The Crossing Group - The Tunneling Company - Pneumatic Pipe Ramming - Tunneling - Augering, Boring & Pipe Ramming
